Random Get Point In Ring
Gets a random point inside or along a ring defined by an inner and outer radius.
Optionally applies a falloff curve to bias how points are distributed between the inner and outer edges.
Use it to spawn objects, effects, or particles in circular bands - for example, rings of fire, aura zones, or orbiting object distributions.
Parameters
| Parameter | Description |
|---|---|
| Center | The world-space center of the ring. |
| Inner Radius | The inner boundary of the ring. Points are never closer than this distance from the center. |
| Outer Radius | The outer boundary of the ring. Points are always within this distance from the center. |
| Falloff | (Optional) An AnimationCurve that defines probability distribution between inner and outer radii.x: 0 = inner radius, 1 = outer radius. Higher y near x = 0 concentrates points near the inner edge; higher y near x = 1 pushes points toward the outer edge. Leave unset for uniform distribution. |
| Store Result | Vector2 variable to store the random world-space point. |
Falloff
Biased to inner radius:

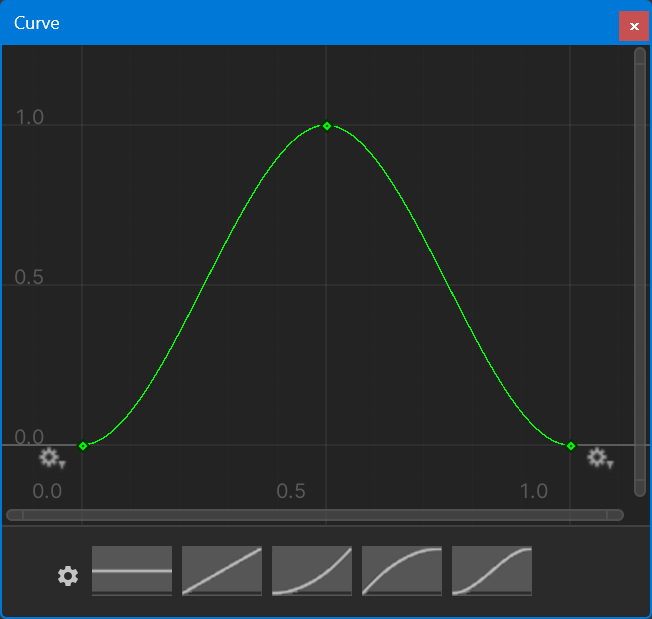

Normal curve around center:
Biased to outer radius:
Tips
- Uniform distribution: Leave Falloff unset for an even spread across the ring’s area.
- Inner concentration: Use a curve peaking near x = 0 to cluster points near the center edge.
- Outer concentration: Use a curve peaking near x = 1 to form a ring concentrated at the edge.
- Inner ≥ Outer: Automatically clamps to produce a circle at the given radius.
- Combine with angle-based logic: Useful for effects like radial bullet rings or halo spawns.
Common Pitfalls
- Negative radius: Automatically clamped to 0.
- Reversed radii: If Outer Radius is smaller than Inner Radius, the action corrects it internally.
- Extreme falloff curves: Overshooting above 1 may distort the expected distribution.
