Convert Actions

Convert actions transform one variable type into another.
They read a source value, apply conversion rules, and store the result.

Some convert actions have optional Success and Failure events.

Convert Bool Actions

Convert Bool To XXX actions are worth calling out as a compact way to branch data without branching flow.

Instead of building extra states or multiple actions, you can map a bool value directly to two outputs:

• Bool: input condition
• True Value: value used when bool is true
• False Value: value used when bool is false
• Store Result: output variable

Convert Actions

Convert Bool To Color

Picks True Value or False Value.

Convert Bool To Float

Picks True Value or False Value.

Convert Bool To GameObject

Picks True Value or False Value.

Convert Bool To Integer

Picks True Value or False Value.

Convert Bool To Sprite

Picks True Value or False Value.

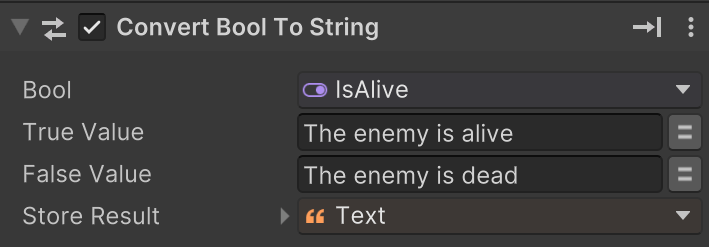

Convert Bool To String

Picks True Value or False Value.

Convert Bool To Transform

Picks True Value or False Value.

Convert Bool To Vector2

Picks True Value or False Value.

Convert Bool To Vector3

Picks True Value or False Value.

Convert Color To Vector4

Maps r,g,b,a to x,y,z,w.

Convert Float To Bool

Uses threshold + comparison mode.

Convert Float To Integer

Supports round, floor, ceil, truncate.

Convert Float To String Map

Rule map; first matching rule wins.

Convert Integer To Bool

0 is false; non-zero is true.

Convert Integer To String Map

Rule map; first matching rule wins.

Convert Seconds To String

TimeSpan format placeholders supported.

Convert String To Bool

Sends success/failure events.

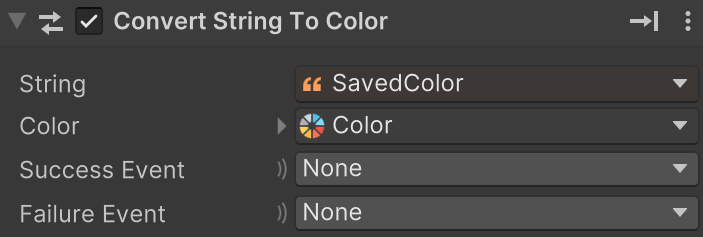

Convert String To Color

Supports HTML color and CSV values.

Convert String To Float

Sends success/failure events.

Convert String To Integer

Sends success/failure events.

Convert Variable To String

Uses PlayMaker debug string formatting.

Convert Vector2 To Vector3

Supports axis mapping + fill value.

Convert Vector3 To Vector2

Selects which axes to keep.

Convert Vector4 To Color

Maps x,y,z,w to r,g,b,a.
