Value

Value actions evaluate variables and branch your FSM based on test results.

Most follow the Check pattern: test a target value, send a True/False event, and optionally store the result in a bool.

Check Actions

Actions that start with Check evaluate a condition:

#	Control	Description
	Target	The target to check.
	Check	The test to perform.
	True Event	Event to send if the test is true.
	False Event	Event to send if the test is false.
	Store Result	Store the result of the test in a bool variable.

All Check actions follow this format, only the test varies.

Condition Builder

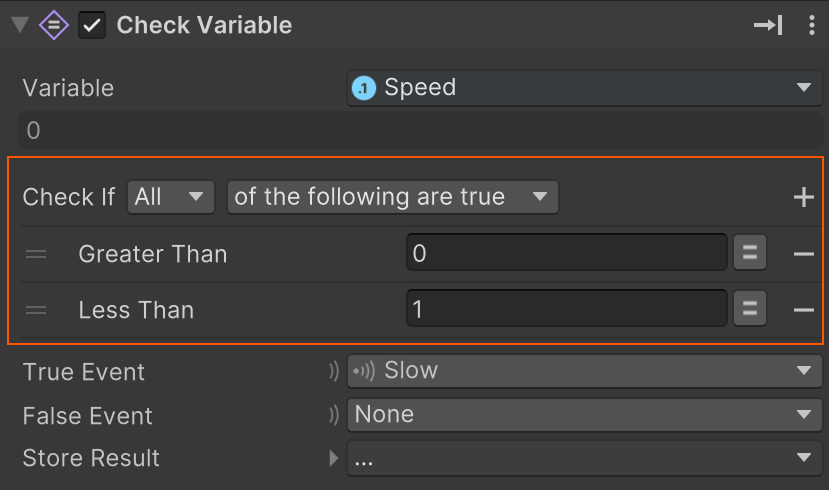

Some actions use a Condition Builder to build the test:

The available tests depend on the type of variable you're checking.

Logic Value Actions List

Action Name	Test
Bool Is True	Checks if a bool variable is true.
Check Bool Equals	Checks if a bool variable equals a given value.
Check Data Record Equals	Checks if two Data Records are equal by field values.
Check Enum Equals	Checks if an enum variable equals a given value.
Check Float	Checks a float value against a selected condition.
Check Float Equals	Checks if a float variable equals a given value.
Check Float Greater Than	Checks if a float variable is greater than a given value.
Check Float Greater Than Or Equal	Checks if a float variable is greater than or equal to a given value.
Check Float Is Negative	Checks if a float variable is negative.
Check Float Is Positive	Checks if a float variable is positive.
Check Float Less Than	Checks if a float variable is less than a given value.
Check Float Less Than Or Equal	Checks if a float variable is less than or equal to a given value.
Check Float Value	Checks a float value.
Check Game Object	Checks a GameObject value against a selected condition.
Check Game Object Equals	Checks if a GameObject variable matches a given value.
Check Int	Checks an integer value against a selected condition.
Check Int Equals	Checks if an integer variable equals a given value.
Check Int Greater Than	Checks if an integer variable is greater than a given value.
Check Int Greater Than Or Equal	Checks if an integer variable is greater than or equal to a given value.
Check Int Less Than	Checks if an integer variable is less than a given value.
Check Int Less Than Or Equal	Checks if an integer variable is less than or equal to a given value.
Check Int Value	Checks an integer value.
Check String	Checks a string value against a selected condition.
Check String Equals	Checks if a string variable equals a given value.
Check Transform	Checks a transform value against a selected condition.
Check Variable	Checks a variable value against a selected condition.
Check Variable Equals	Checks if a variable equals a given value.
Int Compare	Compares an integer variable with another integer.
