Data Table

Data Tables let you store and organize custom data as rows.

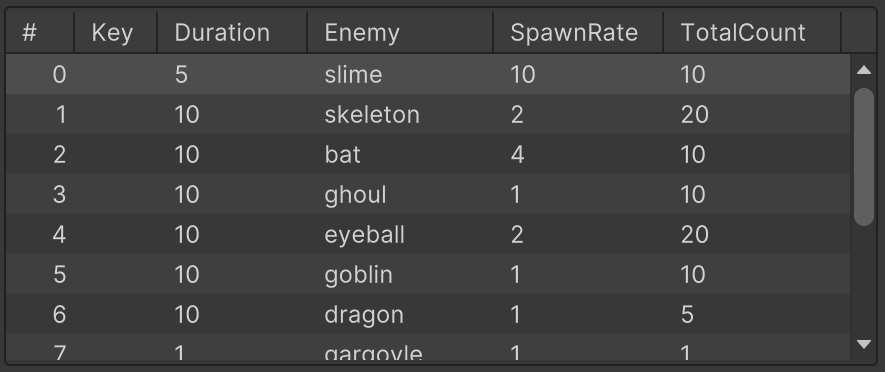

Enemy Waves

This is useful for things like inventory items, shop entries, dialogue options, quests, etc.

A Data Table can be stored in an Asset or Component.

Creating Data Table Assets

In the Project Window:

Create > PlayMaker > Data > Data Table

Adding Data Table Components

On a GameObject:

Add Component > PlayMaker > Data > Data Table Component

Inspector

The Data Table inspector shows a list view of the whole table.

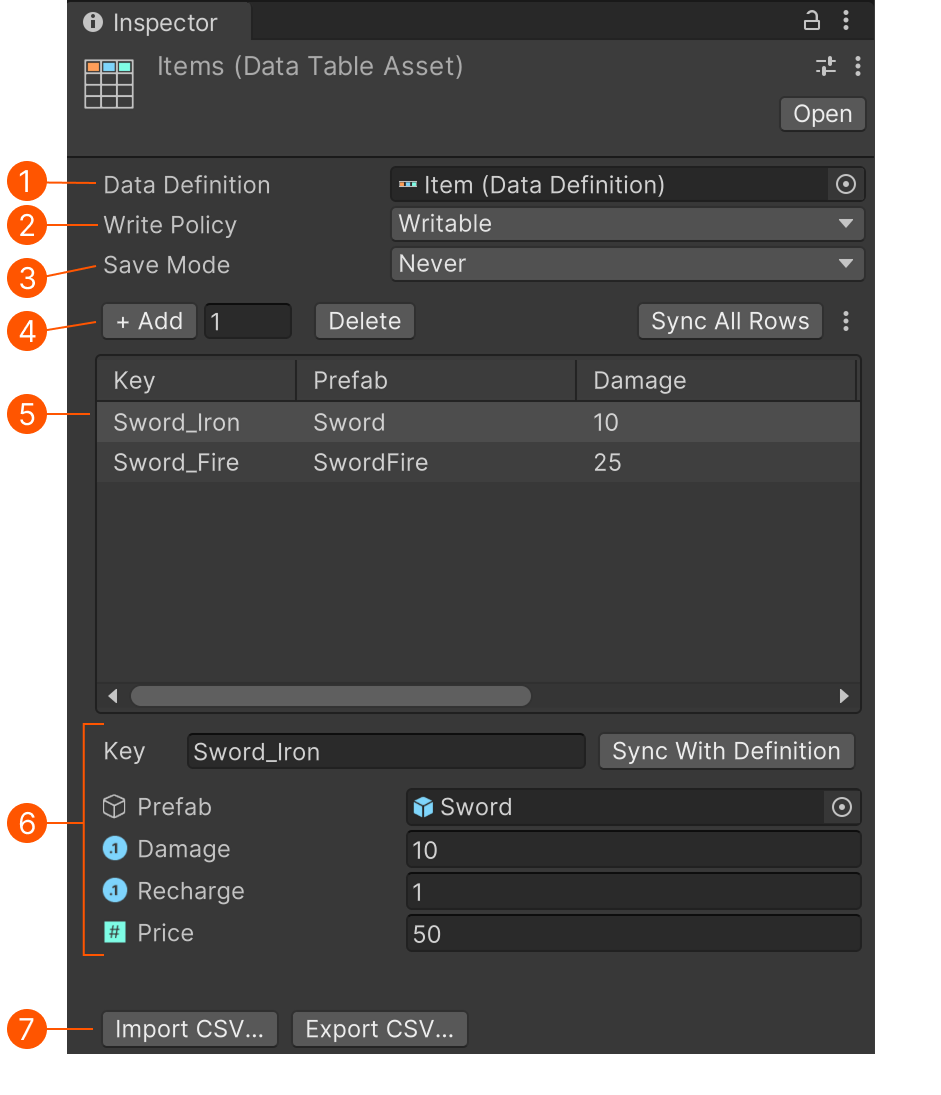

Data Table Inspector

# Control Description
Data Definition The data definition used to build the table.
Write Policy Determines how the table can be written to at runtime.
Save Mode Sets if/how the table can be saved and loaded using the Save System
Edit Controls Edit a field's name, type and default value.
The description will be used in tooltips.
Table View A multi-column list view. Select an item to edit it.
Row Editor Edit the selected row. Use the Key as an optional identifier for the row.
Import/Export Import/Export controls. Use this to edit tables in another tool.
Sync With Definition Sync the row to a defintion if it has changed.

Write Policy

  • Writable - The table can be freely changed.
  • Readonly - The table cannot be written to at runtime. Useful for configurations and presets.

Edit Controls

  • Add - Add the specified number of rows to the table.
  • Delete - Delete the selected rows.
  • Sync All Rows - Sync the table to the definition if it has changed.
  • Menu - Misc options (Delete all rows)

You can also multi-select rows and delete or move them.

Import Export Tools

These tools let you export the table in a format that can be edited in external tools.

For example, export a CSV to edit in a spreadsheet tool, then import the edited CSV to update the table.

Workflow Example

Define data for a wave of enemies:

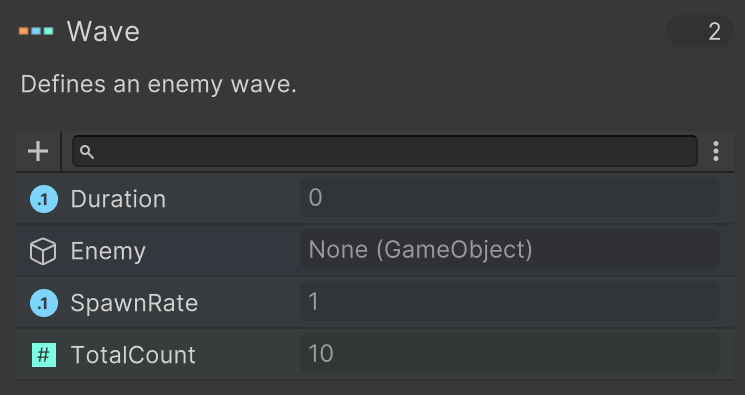

Enemy Wave Data Definition

Use this to build a table of enemy waves:

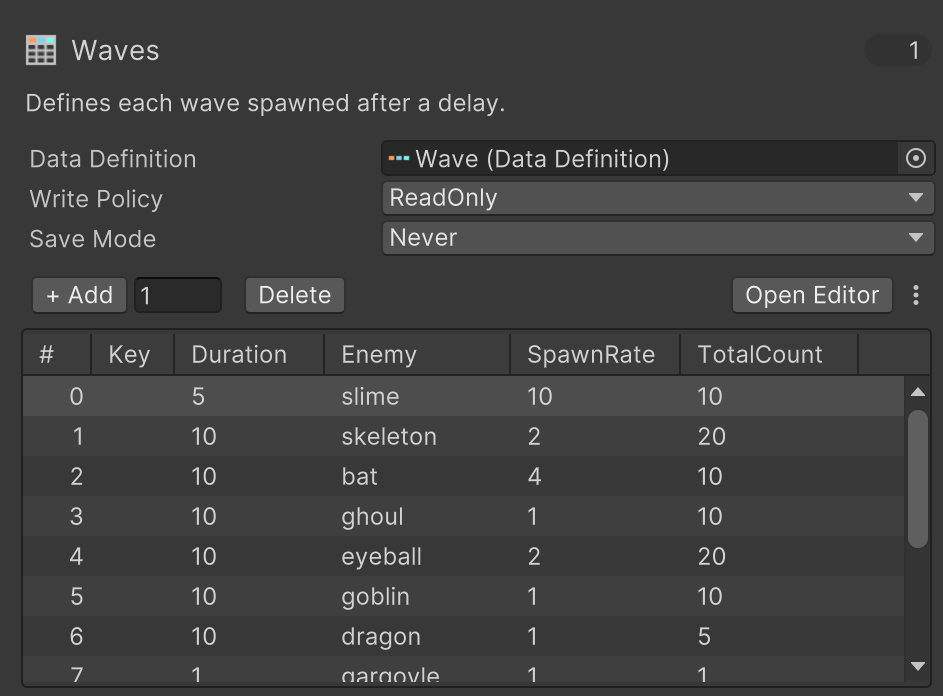

Enemy Wave Table

Use actions to get information on the next wave:

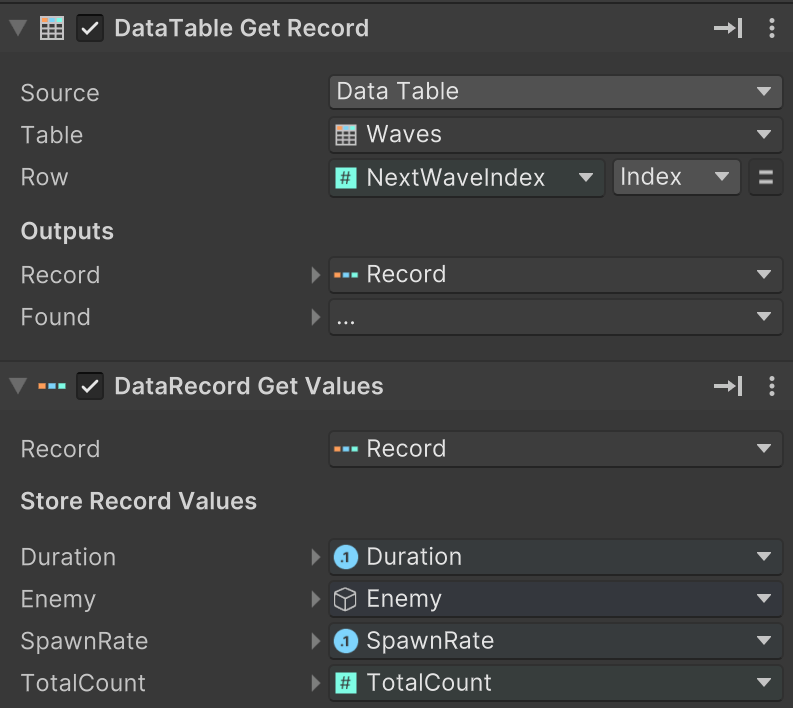

Get Next Enemy Wave

Use this information to spawn the next wave.
