Tiled Image Meter

A Tiled Image Meter displays a value using a repeating (tiled) sprite.

This is ideal for:

• Hearts / Lives
• Ammo Pips
• Inventory Slots
• Energy / Stamina Segments
• Any discrete icon-based meter

Widget setup:

• Add and configure a Tiled Image Meter component.
• Update the meter with a Tiled Image Meter Update action.
• Optionally set value, value-per-icon, and max-icons together with Tiled Image Meter Set Values.

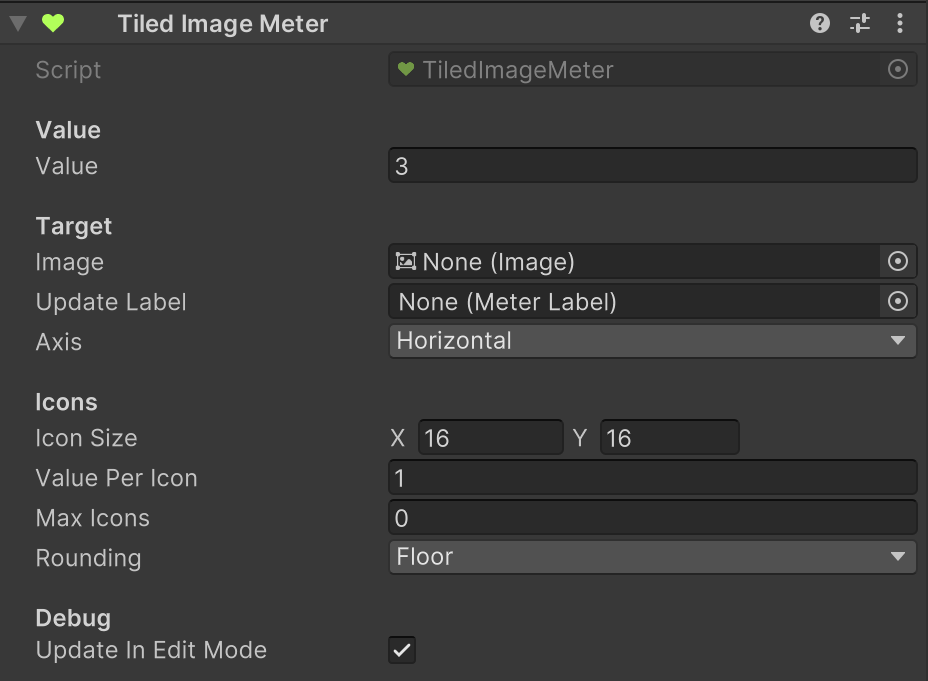

Tiled Image Meter Component

Add Component -> PlayMaker -> Widgets -> Tiled Image Meter

Parameters

Field	Description
Value	Current value shown by the meter. In edit mode, this is used for preview.
Image	The Image to resize. Must use Tiled type.
Axis	Direction the meter grows: Horizontal or Vertical.
Update Label	An optional Meter Label to update when the meter changeds.
Icon Size	Size (UI units / pixels) of one icon tile.
Value Per Icon	How much one icon represents (e.g., 1 HP per heart, 0.5 for half-hearts).
Max Icons	Maximum icons to show (0 = unlimited).
Rounding	How partial icon counts are handled: Floor, Ceil, or Round.
Update In Edit Mode	When enabled, the meter updates automatically in the editor for previewing.

Notes:

• Negative values are automatically clamped to zero.

Actions

Tiled Image Meter uses these actions:

• Tiled Image Meter Update
• Tiled Image Meter Set Values

Tips

• Match Icon Size to the sprite's pixel size for crisp results.
• Use fractional Value Per Icon (e.g., 0.5) for half-hearts or partial pips.
• Use Max Icons to cap display (e.g., max 5 hearts).
• Enable Update In Edit Mode while adjusting UI layout for live preview.
